CYBEL PVC WINDOW

The PVC window without compromise

Cybel windows and French doors guarantee real airtightness with high thermal performance. They offer excellent acoustic comfort and great architectural freedom

Home > Windows and patio-doors > PVC Windows > Cybel PVC windows

FENÊTRE PVC CYBEL

La fenêtre pvc sans compromis

Les fenêtres et portes-fenêtres Cybel garantissent une réelle étanchéité avec une performance thermique élevée.
Elles offrent un excellent confort phonique et une grande liberté architecturale.

THE PVC WINDOW WITHOUT COMPROMISE

> CYBEL PERFORMANCES

Uw up to 1.0

Sw up to 0.52

Tlw up to 59%

Rw up to 45 dB

A*4

Color options for both interior and exterior
Glazing 4 / 20 Argon / 4 FE, Black aluminum spacer
Structural glazing bonded to the composite core, which ensures the stability of the sash and guarantees the proper functioning of the locking mechanisms

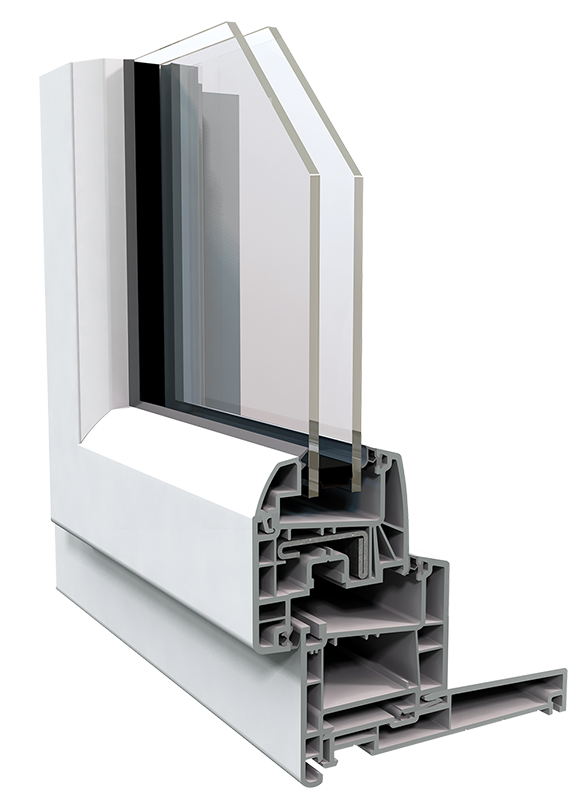

Frame thickness of 72 mm and sash thickness of 78 mm, made of a multi-chamber composite structure for high-performance thermal insulation

ALL THE POSSIBILITIES FOR YOUR PROJECT WITH THE CYBEL PVC WINDOW

FOR NEW BUILD AND RENOVATION

PRODUCT

TYPOLOGY

Window

French door

Other options
French opening or tilt-and-turn opening with 1, 2, 3, or 4 leaves / Hopper frame / Fixed frame, fixed transom, or fixed lower panel / Sliding window with 2 leaves, one of which is fixed / Sliding window with 2 leaves

WOOD TYPES

AND COLORS

Close to

RAL 7047

Grey

Close to

RAL 9001

Light beige

Close to

RAL 9016

White

+ 11 foil finishes including 4 wood imitates

COORDINATED AESTHETICS BETWEEN WINDOWS AND FINISHES

Without compromise, the Cybel range includes all the finishing parts that signify the product's quality: the meeting edge cap and storm guard are coordinated with the joinery's color.

If you order an integrated roller shutter or half lintel with your foiled window, we will systematically match the color of the tracks and the final slat of the curtain to the exterior color of your window.

Grey

White

Light Beige

close to RAL 9001

Golden Oak

Anthracite Grey

Irish Oak

Walnut

Cerused White

Mahogany

Veined Silver Grey

Brushed Platinum Metal

Matte Black

Basalt Grey

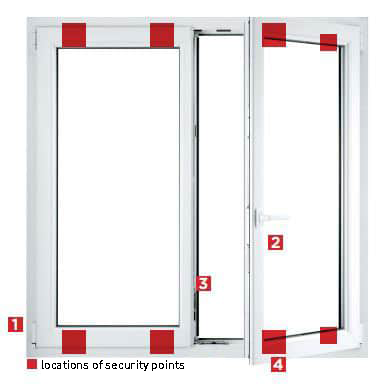

OPTIMIZE THE SECURITY OF CYBEL WINDOWS

Add the 'security pack' to enhance the protection of your home

1 - Profiles equipped with galvanized steel reinforcements for increased strength. Rotating mechanisms and strike plates screwed into the frame reinforcements to resist pulling.

2 - Sécustik handle with a locking system combined with a drill-resistant plate.

3 - Lever handle lock ensuring peripheral locking of the secondary sash.

4 - Four mushroom-shaped rollers combined with 4 security strike plates per sash, screwed into the steel reinforcements for better resistance to pulling.

WHAT SETS CYBEL PVC WINDOWS APART

OPTIMAL BRIGHTNESS

- Up to 10% more light compared to standard market ranges (with or without roller shutter).

- Specific MILLET manufacturing principle designed to reduce the window frame to guarantee maximum clarity.

- Modern design with a narrow meeting rail.

HIGH-PERFORMANCE INSULATION

- The wood-tone foil finish joinery is offered with a 4/20/4 glazing featuring a low-emissivity coating, argon filling, and a black Warmedge composite spacer.

- The Warmedge spacer ensures optimal insulation between the two glass panes and reduces thermal losses.

ENHANCED SECURITY

- As standard on all our foil finish joinery, metal reinforcements are present in the sash profiles (1) and frame profiles (2).

- The strike plates that lock the closure are screwed into these reinforcements for maximum resistance against break-in attempts.

plus de securite fenetres PVC gamme Cybel

BASIC SECURITY

- Closing system with angle return and latch on the semi-fixed sash, ensuring optimal ease of use.

- Metal strike plate and mushroom-shaped anti-lifting roller on tilt-and-turn frames.

- Wind resistance: up to 190 km/h (V*A3).

securite renforcee fenetres PVC gamme Cybel

GUARANTEED HIGH PERFORMANCE

- Air tightness: double seal, best performance on the market (A*4).

- Thermal comfort: double glazing with 28 mm insulating panel or triple glazing with 36 mm.

- Water tightness: certified for all types of installation, including ETICS (External Thermal Insulation Composite System).

NEW :
2-leaf sliding door

> PERFORMANCE

Uw up to 1.2W/(m².K)

Sw up to 0.48

Tlw up to 48%

Rw (C ; Ctr ) = 38 (-1 ; -4)

A*4 E*7B V*B2

Optimal Daylight

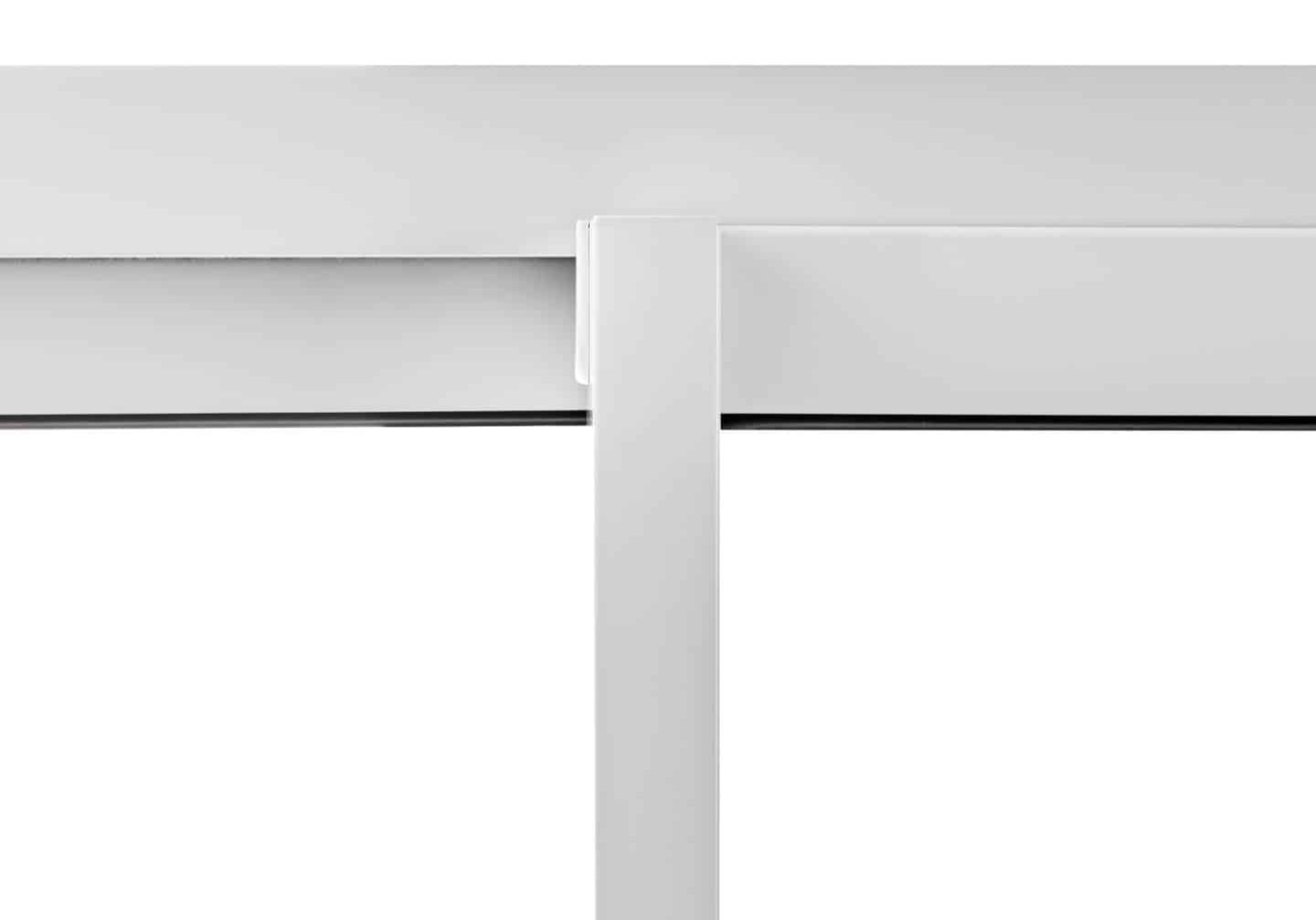

- Visible central aluminium mullion of 35 mm (87 mm on the previous version)

- Visible sash crossbar of 61 mm (84 mm on the previous version)

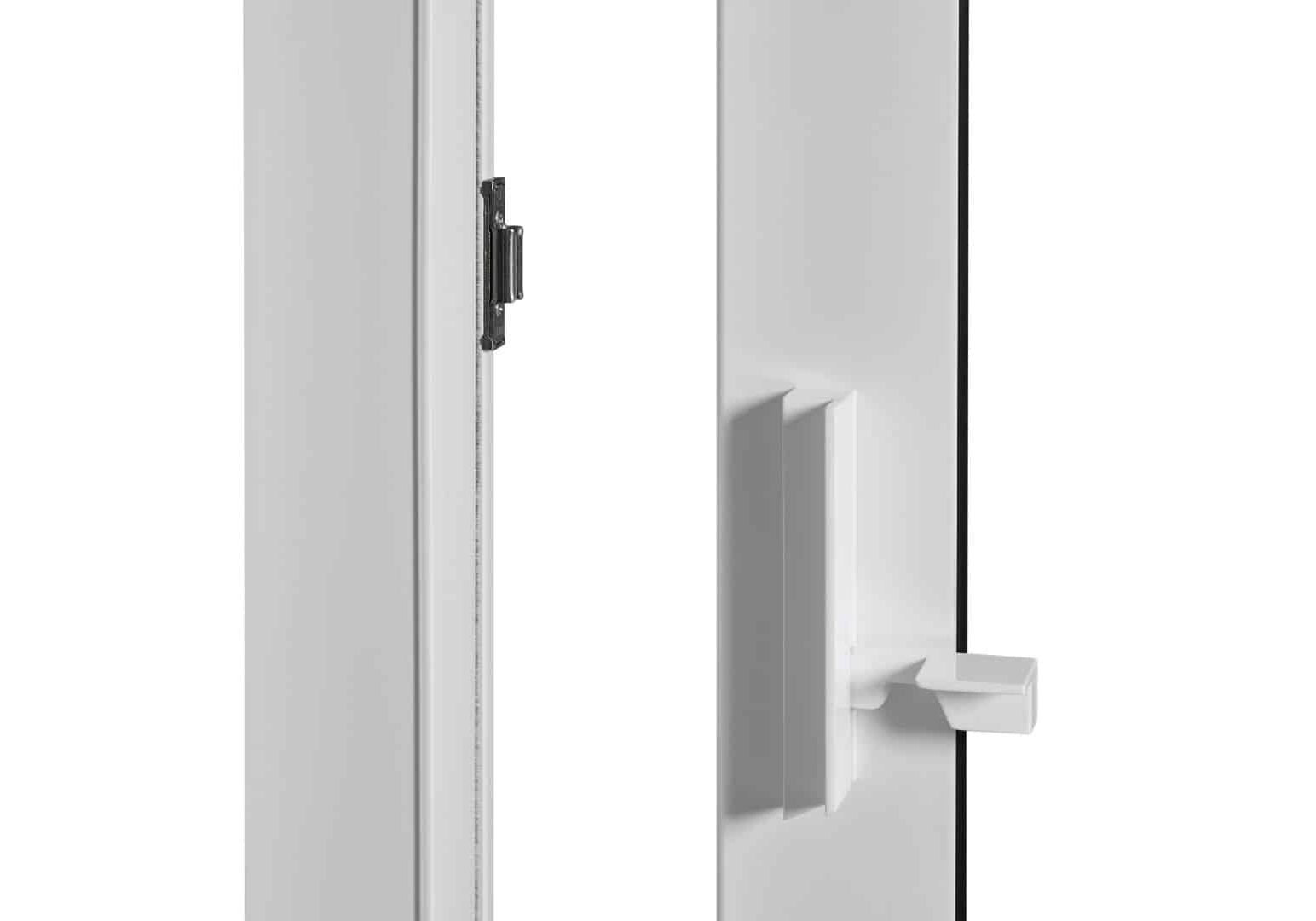

Logical handle: intuitive operation

- Available in simple locking mechanism or lock version

- Closing system with multiple mushroom-shaped rollers (1 to 3 points depending on dimensions) and anti-lifting pin.

Peripheral central seal optional

for optimal thermal performance

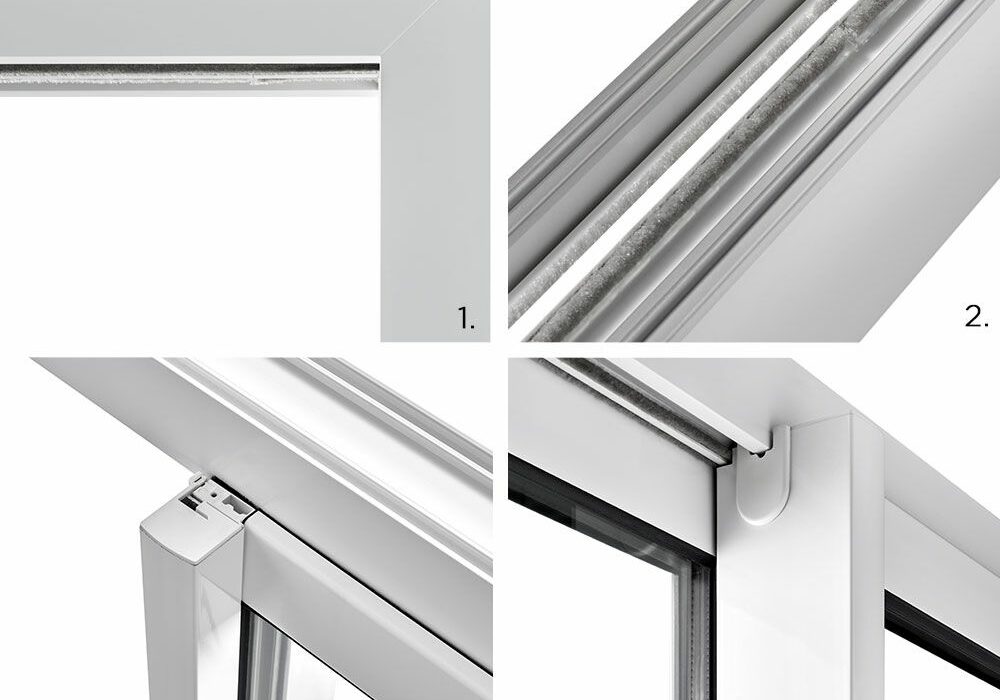

Carefully crafted finishes

1 - Discrete welding of the frames

2 - Anodized aluminum rail on standard support and stainless steel rail on 20 mm PMR threshold (optional)

3 - Profile end caps

HANDLES & COVER CAPS

Poignée VERONA Secustik aspect aluminium (en base sur la gamme Cybel plaxée et laquée) Poignée Brest en anthr. 2 faces

VERONA aluminum handle

Secustik aluminum finish (standard on the Cybel foiled and lacquered range).
Brest handle with brushed aluminum finish on anthracite double-faced joinery.
